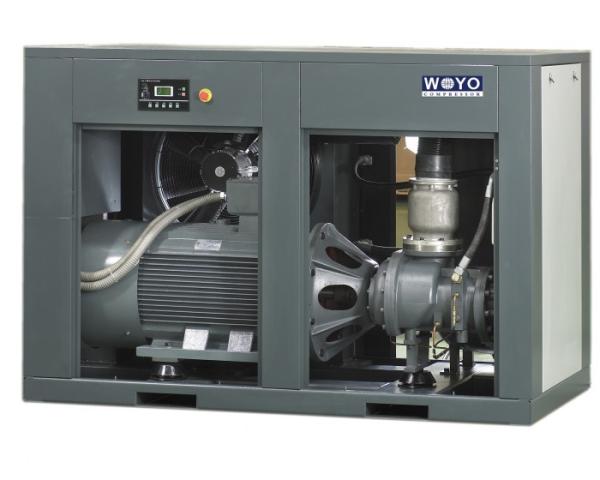

7.5KW-250KW PM Air Compressor

Brand Name : WOYO

Model Number : HV

Certification : CE,ISO

Place of Origin : CHINA

MOQ : One unit

Price : USD1500-USD38000

Payment Terms : T/T

Supply Ability : 100 units/month

Delivery Time : 5-30days

Packaging Details : PLYWOOD CASE

Warranty : Two year for airend. One year for rest of parts

Type : PM+VSD

Power : 7.5-250KW

Display : SMART LCD

Energy saving : 20%-30%

Product Name : PM Air Compressor

Contact Now

PM Screw Air Compressor, Permanent Magnet, Inverter, Low noise,Direct drive

1. The efficient permanent magnet motor and the Airend are perfectly matched. Through the advanced speed regulation and frequency conversion technology of the frequency converter, it can greatly reduce the use cost of customers and provide stable and reliable compressed air.

2. Permanent magnet frequency conversion model can adjust the running speed of air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor is in linear proportion to the gas produced, which has achieved the purpose of stabilizing the pressure and saving energy

Model Power(KW) Pressure(MPa) Capacity(m3/min) Pipe Diameter Weight (kg) Dimension(mm)
HV10 7.5 0.8-1.3 0.7-1.1 G1/2 180 960*650*850
HV15 11 0.8-1.3 1.0-1.7 G3/4 300 1000*750*1000
HV20 15 0.8-1.3 1.6-2.3 G3/4 320 1000*750*1000
HV30 22 0.8-1.3 2.7-3.4 G1 420 1070*850*1260
HV40 30 0.8-1.3 3.1-5.0 G1 450 1070*850*1260
HV50 37 0.8-1.3 4.7-6.4 G1 1/2 600 1200*1000*1390
HV60 45 0.8-1.3 5.7-7.2 G1 1/2 700 1200*1000*1390
HV75 55 0.8-1.3 6.7-9.4 G2 920 1700*1200*1550
HV100 75 0.8-1.3 9.1-12.2 G2 950 1700*1200*1550
HV125 90 0.8-1.3 11.4-15.2 G2 1350 2100*1300*1650
HV150 110 0.8-1.3 14.5-19.9 DN80 2650 2500*1650*1900
HV180 132 0.8-1.3 16-23 DN80 2850 2500*1650*1900
HV220 160 0.8-1.3 21-27 DN80 4100 3000*1900*1950
HV250 185 0.8-1.3 23-30 DN80 4300 3000*1900*1950
HV270 200 0.8-1.3 25.5-32.5 DN100 5300 3600*2200*2200
HV300 220 0.8-1.3 28.8-38 DN100 5500 3600*2200*2200
HV340 250 0.8-1.3 31.5-43 DN100 5800 3600*2200*2200
